- Number of Channels: 2
- Number of Preamps: 2
- Sample Rate: 192 kHz / 24 bit

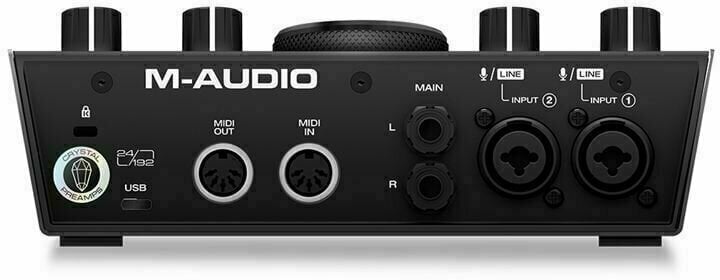

M-Audio AIR 192|6 USB Audio Interface
USB audio interface - 2 In/2 Out - from M-Audio. With the AIR 192/6, you can create 24-bit/192kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192/6 enables you to record up to 2 channels at once with its 2 dedicated XLR + 6,3 mm jack balanced combo inputs, and 2 all-new 6,3 mm jack instrument inputs that have a specially designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface. 5-pin MIDI In and Out connections are included for connecting synths, sequencers and other external MIDI gear.
Our engineers designed the Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192/6 incorporates pristine A/D converters to provide 24-bit resolution digital audio for explosive dynamic range that captures every nuance and subtlety of your performance.
- Package included: AIR 192/6, USB-C-to-USB-C Cable, USB-C-to-USB-A Cable, Software Download Cards, manual
- Minimum System Requirements: macOS: 10.8 Class Compliant, PC: Windows 7, Windows Driver, Standard USB 2.0 or USB-C Port
Mic Input 1-2 (balanced XLR)
- Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
- Dynamic Range: 104 dB (A-weighted)
- Signal-to-Noise Ratio: 104 dB (+1.0 dBu, A-weighted)
- THD+N: 0.002%
- Preamp EIN: -128 dBu (max gain, 150 Ohm source, A-weighted)
- Max Input Level: +1.5 dBu
- Gain Range: 55 dB
Line Input 1-2 (balanced 6,3 mm jack TRS)
- Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
- Signal-to-Noise Ratio: 101 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.002%
- Max Input Level: 16 dBu
- Gain Range: 55 dB
Inst Input 1-2 (unbalanced 6,3 mm jack TS)
- Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
- Dynamic Range: 100 dB (A-weighted)
- Signal-to-Noise Ratio: 98 dB (+ 4 dBu, A-weighted)
- THD+N: 0.005%
- Max Input Level: 6 dBu
- Input Impedance: 1 MOhm
- Gain Range: 24 dB
Main Outputs, L and R (balanced, differential 6,3 mm jack TRS)
- Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
- Dynamic Range / Signal-to-Noise Ratio: 106 dB (A-weighted)
- THD+N: 0.005%
- Max Output Level: +13 dBu (1 kHz, -1 dBFS)
Headphone Output (6,3 mm jack TRS)
- THD+N: 0.005%
- Output Impedance: 10 Ohm
- Power: USB-bus-powered
- Dimensions: 15,2 x 7,1 x 19,8 cm
- Weight: 0,95 kg
- Colour: Black
Number of Channels: 2
This product has two channels, giving you the flexibility to connect two audio sources at once. This configuration allows you to combine different instruments and effects, enriching your sonic expression and giving you more variability.
Number of Preamps: 2
The product features two preamplifiers, ensuring high-quality sound processing for two input channels. This system provides clear sound with low noise, ideal for stereo recording or using two microphones or instruments simultaneously.
Phantom Power: Yes
Phantom power provides the necessary voltage for condenser microphones that require an external power source to operate properly. This power supply is built directly into the microphone input, eliminating the need for additional power supplies.
Headphone Output: Yes
The headphone output allows direct connection of headphones for private listening. This output provides a convenient way to enjoy the sound without disturbing others or ambient noise.
Package Contents
- Adapter
- Manual
- USB-C Cable
Number of Channels
Number of Preamps
Phantom Power
Word Clock
ADAT
Interface
MIDI Interface
Software
Touch Loops, Air Mini Grand, MPC Beats, Ableton Live Lite, Creative FX Collection, Air DB-33, AIR Xpand!2
Controls
S/PDIF
USB
Yes
Ethernet
Instrument Inputs
Microphone Input
Line Inputs
Line Output
Headphone Output
Offer Configuration
Standard offer
Package Contents
Adapter, Manual, USB-C Cable
UK/EU Power supply included
No
Made in
China
