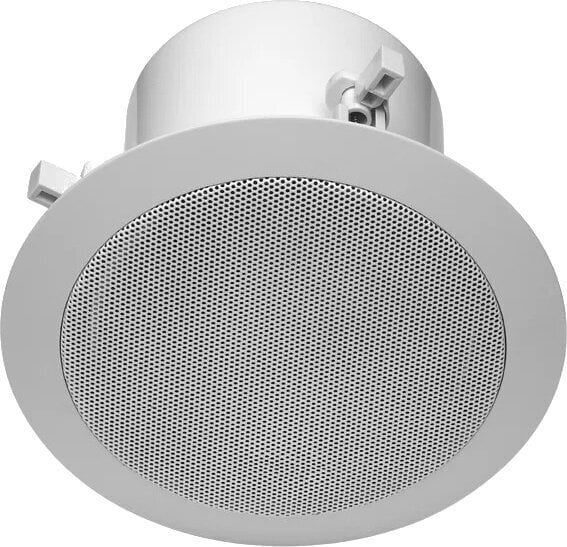

FBT CSL 520 TIC Ceiling Speaker

Product code: 1295062 (29416)

New

FBT CSL 520 TIC Ceiling Speaker

Product code: 1295062 (29416)

€59
In stock at the supplier
The delivery time will be specified after ordering from the supplier
Based on your order, we will try to restock the goods and contact you with a delivery date. If you don't want to wait, check alternative products (4).
Ceiling Speaker FBT CSL 520 TIC Ceiling Speaker

FBT CSL 520 TIC Ceiling Speaker

€59
The FBT CSL 520 TIC is a compact in-ceiling speaker engineered for clear background music and speech in commercial or public spaces. This 2-way model combines a 5-inch woofer and a 0.5-inch tweeter, supporting both 70/100V line and 8-ohm setups to ensure flexible installation. ABS body and metal grille offer durability and a modern finish,...
  • Woofer: 5"
  • Tweeter: 0,5"
  • Power: 20 W
  • Frequency Range: 100 Hz - 20 kHz

FBT CSL 520 TIC Ceiling Speaker

The FBT CSL 520 TIC is a compact in-ceiling speaker engineered for clear background music and speech in commercial or public spaces. This 2-way model combines a 5-inch woofer and a 0.5-inch tweeter, supporting both 70/100V line and 8-ohm setups to ensure flexible installation.

  • ABS body and metal grille offer durability and a modern finish, blending with most ceilings.
  • With power handling up to 20W RMS, expect reliable output in small to mid-size rooms.
  • Its 88 dB (1W/1m) sensitivity allows efficient sound projection without requiring high amplification.
  • Installers will appreciate the quick-fix "dog-ears" mounting system, designed to save time during setup.

FBT CSL 520 TIC ceiling speaker delivers reliable audio for installations

For background music or paging systems, the FBT CSL 520 TIC ceiling speaker delivers efficiency, clarity, and straightforward installation. Thanks to its dual-cone design and adaptable power settings, this model fits a range of commercial environments. The CSL 520 TIC offers clear speech and music reproduction, which makes it popular for offices, retail spaces, and educational facilities. Installers often notice the robust build and time-saving mounting system. Those working in demanding spaces requiring strong coverage and seamless integration choose the CSL 520 TIC.

Quick installation and adaptable performance stand out

Reducing installation time, the CSL 520 TIC features an innovative quick-fix mounting system unlike traditional ceiling speakers. Its multitap transformer enables both 70V/100V distributed systems and 8-ohm direct wiring, so it adapts to various installation needs.

Who is this ceiling speaker for?

This model suits installers, facility managers, and businesses seeking a discreet, reliable solution for background music or paging. In venues and offices where speech clarity and even audio coverage matter—alongside budget and installation time—this speaker is the answer. Need flexible wiring? It accommodates both high-impedance and low-impedance setups. A compact size and modern finish help it blend into most ceiling types. During renovations or upgrades, installers can use the quick mounting system for a faster result. In public areas, retail stores, or classrooms, users can expect a pleasant acoustic environment without visual clutter.

Woofer

Woofer: 5"

Thanks to 5" bass woofer, you will enjoy deep, rich and dynamic bass that adds a new dimension to your sound. This woofer is specially designed to offer clean and precise bass performance.

Frequency Range: 100 Hz - 20 kHz

The frequency response 100 Hz - 20 kHz provides a wide enough range to capture all the fine musical and sonic details.

Sound Pressure Level - SPL (dB): 104

High SPL levels up to 104 dB allow you to experience the sound as it was originally intended, with sufficient volume and dynamics.

Power (Watt): 20

With power up to 20 W, you get plenty of headroom for impressive volume and dynamics whether you're in the studio, at home, or partying.

Suitability
Properties

Colour

White

Woofer

5"

Tweeter

0,5"

Power

20 W

Impedance

8 Ohm

Frequency Range

100 Hz - 20 kHz

Variant

White

Material

Housing

ABS

Acoustics

Sound Pressure Level - SPL (dB)

104

Sensitivity (dB)

88

Package

Package Quantity (pcs)

1

Package Contents

Manual

Accessory

Mounting

Dog-Ears

Dimensions and Weight

Diameter (mm)

203

Depth (cm)

14.5

Net Weight (kg)

1.7

Country

Made in

China

Documents

Manufacturer information
Manufacturer:
FBT ELETTRONICA SPA
VIA PAOLO SOPRANI 1, ZONA INDUSTRIALE SQUARTABUE, 62019, RECANATI, Italy
Safety instructions

Please refer to the user manual for the specific safety instructions for this product.
