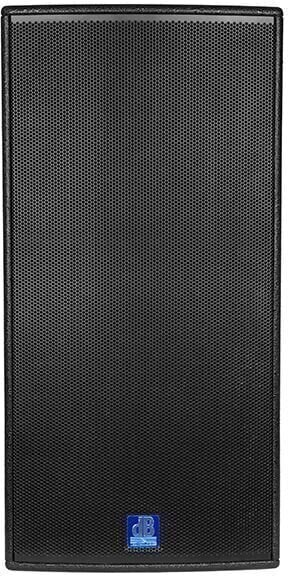

dB Technologies FLEXSYS F 315 Active Loudspeaker
Brand: dB Technologies
Product code: 355302 (F 315)
dB Technologies FLEXSYS F 315 Active Loudspeaker
Brand: dB Technologies
Product code: 355302 (F 315)
dB Technologies FLEXSYS F 315 Active Loudspeaker
dB Technologies FLEXSYS F 315 Active Loudspeaker
The F315 speakerbox is an active three-way system especially designed to capture the entire frequency range. It excels in its performance as it delivers the great sound without requiring an added subwoofer. The F315 features a Class D Digipro® amplifier and a powerful 15-inch woofer in a bass reflex housing that can easily cover a very wide area.
Technical Data:
- Speaker Type: 3-Way Active Speaker
- Frequency Response [-10dB]: 47 - 20.000 Hz
- Frequency Response [+/- 3dB]: 60 - 19.000 Hz
- Max SPL: 131 dB
- HF: 1 "
- Type HF: compression driver
- Directivity: 90 x 40 °
- Horn: CD Horn
- MF. 6.5 "
- Type MF: Hornloaded
- LF: 15"
- Amp Technology: Digipro®
- Amp Class: Class D
- Power RMS: 1000 W
- Peak Power: 2000 W
- Controller: DSP 24bit/48kHz
- System Presets: Flat, Processed
- Limiter: Dual Active
- Peak, RMS, Thermal
- Crossover Frequency LF-HF: 1800 Hz
- Slope LF-HF: 24 dB/Octave
- Housing: Multiplex
- Width: 440 mm (17.6 in)
- Height: 880 mm (34.6 in)
- Depth: 500 mm (20 in)
- Weight: 31 kg (68.34 lbs)
Тype
Bi-Amp
Yes
Multifunctional Housing
No
Pole Mount
Yes
Speakers
1x 15'', 1x 1''
DSP
EQ
No
Bluetooth
No
WiFi
No
Power (Watt)
Frequency Range
Woofer
Middle Speaker
Tweeter
Display
No
Colour
Black
Housing
Plywood Housing
Inputs
USB
No
Outputs
Balanced XLR M
MP3 / Line In
No
AUX IN
No
Microphone Input
No
Power RMS (Watt)
1000
Sound Pressure Level - SPL (dB)
Sound Pressure Level (SPL)
131 dB
Package Contents
Adapter Cable
Height (cm)
88
Width (cm)
44
Depth (cm)
50
Weight
31 kg
Made in
China
Documents
Instructions for use
Manufacturer information
Safety instructions
Please refer to the user manual for the specific safety instructions for this product.
