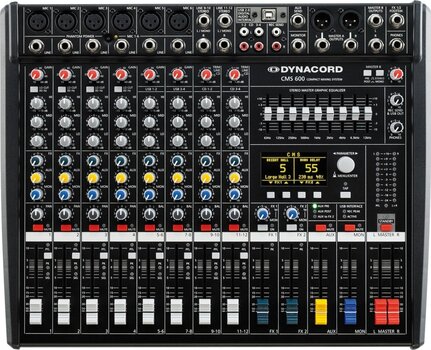

Dynacord CMS 600-3

Lightweight and compact mixer from CMS series that is the ideal choice for all professional applications in which few channels, yet high audio quality, are required. It is also especially well suited to fixed installation. The distinctive feature of the mixer section is the 4+4 channel configuration. In addition to the classic six mono + two stereo analogue inputs, the mixer boasts two stereo digital inputs via USB. These inputs – when occupied – are automatically routed to channels 5-6 and 7-8. This means four fully-featured stereo channels are available – a fact that will particularly please DJs. The 8 channels strips then comprise of 4 mic/line input channels, 2 mic/stereo USB (''super'') channels and 2 stereo line channels. Microphone inputs 1-6 are each equipped with a Gain control and switchable phantom power, whilst channels 9/10 and 11/12 have a Trim control. Channels 1-4 possess a switchable low-cut filter that intervenes at 80 Hz. All channels boast a 3-band EQ with Hi, Mid & Low controls. Each channel offers three sends: FX (post fader), AUX (switchable globally pre-/post-fader) and Monitor (pre-fader). Also present in each channel are a Balance/Pan control, a Mute and PFL switch, and a volume fader with Peak and Signal display. As well as the dual L/R master faders, the master section features FX1, FX2, Aux and Monitor Return controls – not to mention a 9-band master EQ and a digital effects device with 200 presets and 40 user memories. Two different effects (FX1 and FX2) can be used simultaneously and edited with the aid of a large, clear display. Each of the FX sections provides 100 presets and 20 user memories. Dimensions: 416.9 x 109.6 x 347.8 mm. Weight: 5.8 kg.

• Intuitive mixer section: with 8 input channels with 4 Mic / Line, 2 Mic / Stereo-Line, 2 Stereo-Line inputs
• 2 High-Quality FX processors, editable with 100 factory and 20 user presets
• Professional 4x4 24-bit / 96kHz USB interface, recording software and MIDI interface for FX control, please see information on available drivers
• Stereo EQ for the main mix
• First-class components (eg ALPS faders and potentiometers)
• Large, contrast rich OLED display
• Lightweight (5.8kg) super compact package
